Products Description

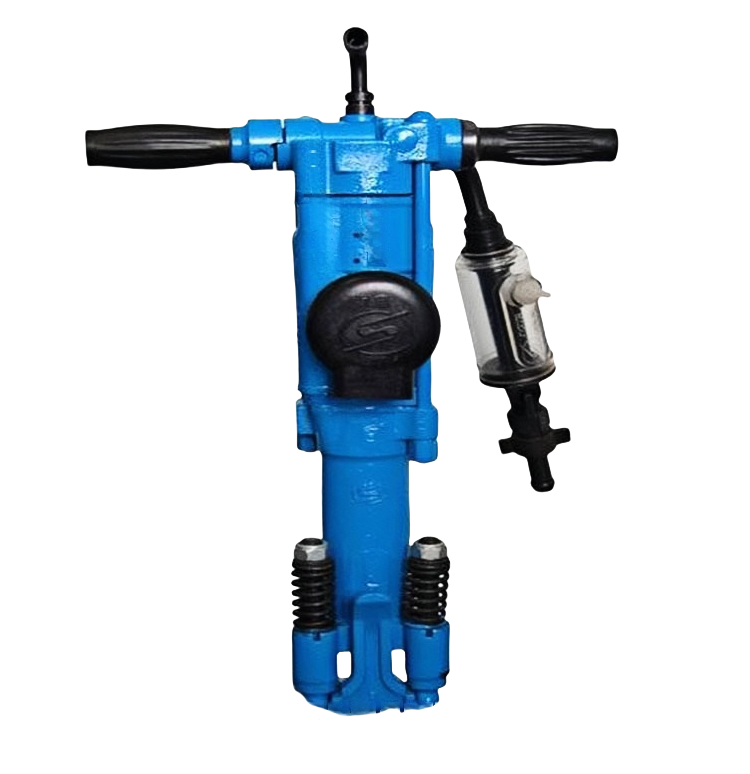

The Y19 hand-held rock drill is a lightweight, portable and reliable rock drilling tool. It is widely used in fields such as small-scale mining, building foundation construction, road maintenance and stone processing. It is suitable for drilling operations on various medium-hard and softer rocks. With its flexible and convenient operation and stable performance, it provides efficient drilling solutions for numerous engineering projects.
Tags:
Technical parameter
Weight: 19 kg
Overall Length: 600 mm
Operating Air Pressure: 0.35 - 0.63 MPa
Cylinder Diameter: 65 mm
Piston Stroke: 54 mm
Impact Frequency: ≥ 28 Hz
Impact Energy: ≥ 28 J
Rock Drilling Air Consumption: ≤ 33 L/s
Drilling Diameter: 34 - 42 mm
Drilling Depth: 5 m
Shank Tail Specification: 22 x 108 mm
