Products Description

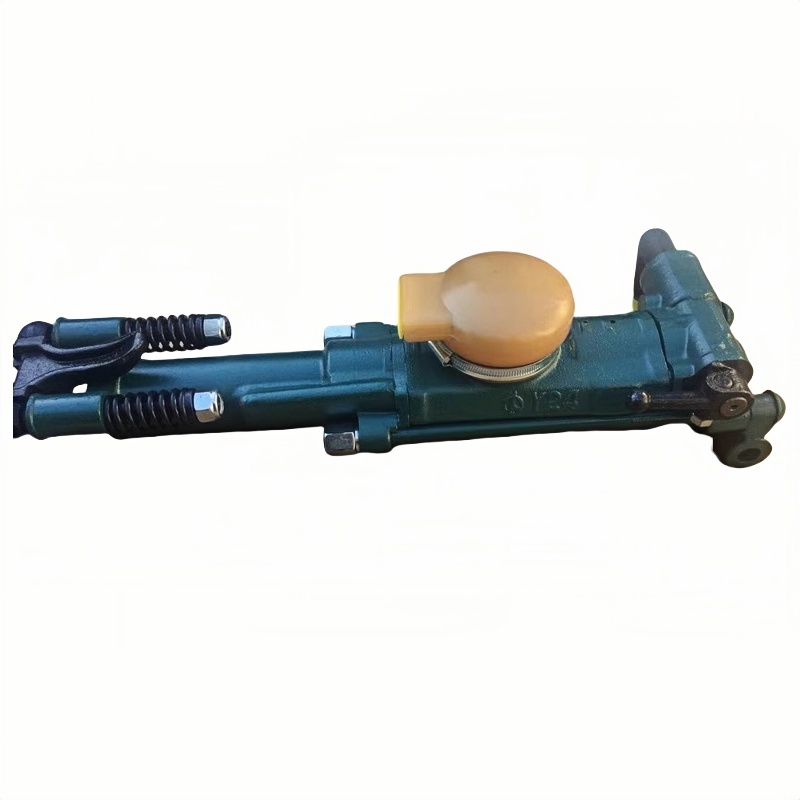

The Y24 model is suitable for dry rock drilling.It is applicable to medium-hard or hard rocks, and can be used to drill downward or inclined blast holes. It can also be used for secondary crushing operations.Its operating mechanisms are centralized, with flexible startup, stable operation and convenient use and maintenance.The whole machine is equipped with the FY200B oiler.
Tags:
Technical parameter
Weight: 24 kg
Overall Length: 678 mm
Operating Air Pressure: 0.4 - 0.63 MPa
Cylinder Diameter: 70 mm
Piston Stroke: 70 mm
Impact Frequency: ≥ 37 Hz
Impact Energy: ≥ 60 J
Rock Drilling Air Consumption: ≤ 60 L/s
Drilling Diameter: 34 - 42 mm
Drilling Depth: 5 m
Shank Tail Specification: B22 x 108 mm
Noise: ≤ 112 dB(A)
Inner Diameter of Air Supply Hose: 25 mm
Inner Diameter of Water Supply Hose: 13 mm
Drilling Depth: 5 m
Shank Tail Specification: 22 x 108 mm
