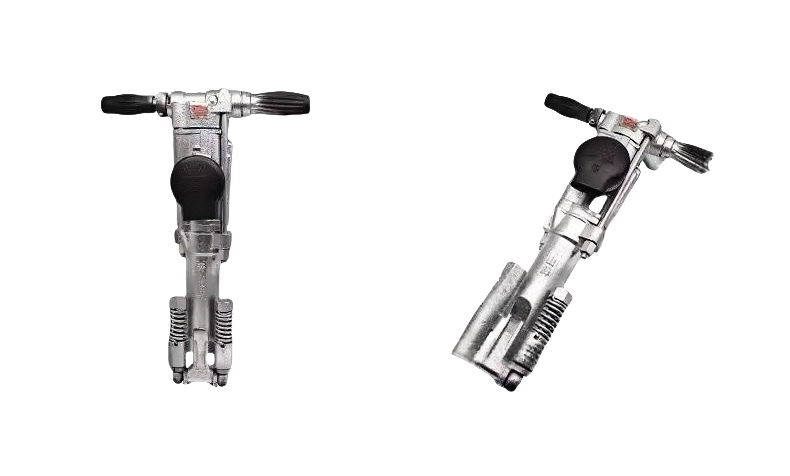

Y20 Hand-held Rock Drill

The Y20 hand-held rock drill is an efficient and portable tool specially designe
Send Inquiry
Description
Argument
Products Description

The Y20 hand-held rock drill is an efficient and portable tool specially designed for rock drilling operations. It is widely applicable to small rock drilling tasks in multiple fields such as mining, construction, road maintenance, and water conservancy projects. With its compact structure, reliable performance and convenient operation method, it has become an ideal choice for numerous on-site workers when dealing with rock drilling work. It can be flexibly used in complex and changeable working environments to meet the specific needs of different projects for rock drilling.

Tags:

Technical parameter

Weight: 20 kg
Overall Length: 561 mm
Operating Air Pressure: 0.35 - 0.63 MPa
Cylinder Diameter: 65 mm
Piston Stroke: 55 mm
Impact Frequency: ≥ 33 Hz
Impact Energy: ≥ 26 J
Rock Drilling Air Consumption: ≤ 50 L/s
Drilling Diameter: 34 - 42 mm
Drilling Depth: 5 m
Shank Tail Specification: 22 x 108 mm
