Products Description

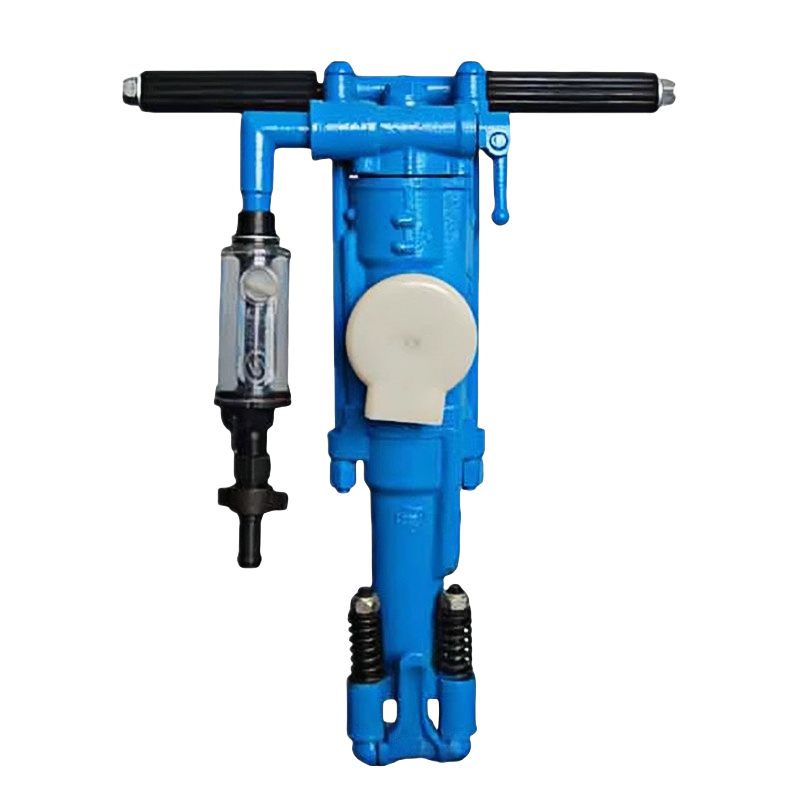

The Y26 hand-held rock drill is an efficient and portable tool specially designed for rock drilling operations. It is applicable to small rock drilling tasks in multiple fields such as mining, construction, road maintenance, and stone processing. With its compact design, reliable performance and convenient operation method, it has become a powerful assistant for numerous on-site workers and can be flexibly used in various complex environments to meet the diverse needs of different projects for rock drilling.
Tags:
Technical parameter
Weight: 26 kg
Overall Length: 680 mm
Operating Air Pressure: 0.4 - 0.63 MPa
Cylinder Diameter: 80 mm
Piston Stroke: 70 mm
Rock Drilling Impact Frequency: ≥ 45 Hz
Impact Energy: ≥ 63 J
Rock Drilling Air Consumption: ≤ 70 L/s
Noise: ≤ 112 dB(A)
Inner Diameter of Air Supply Hose: 25 mm
Inner Diameter of Water Supply Hose: 13 mm
Drilling Diameter: 34 - 42 mm
Drilling Depth: 5 m
Shank Tail Specification: 22 x 108mm
