Products Description

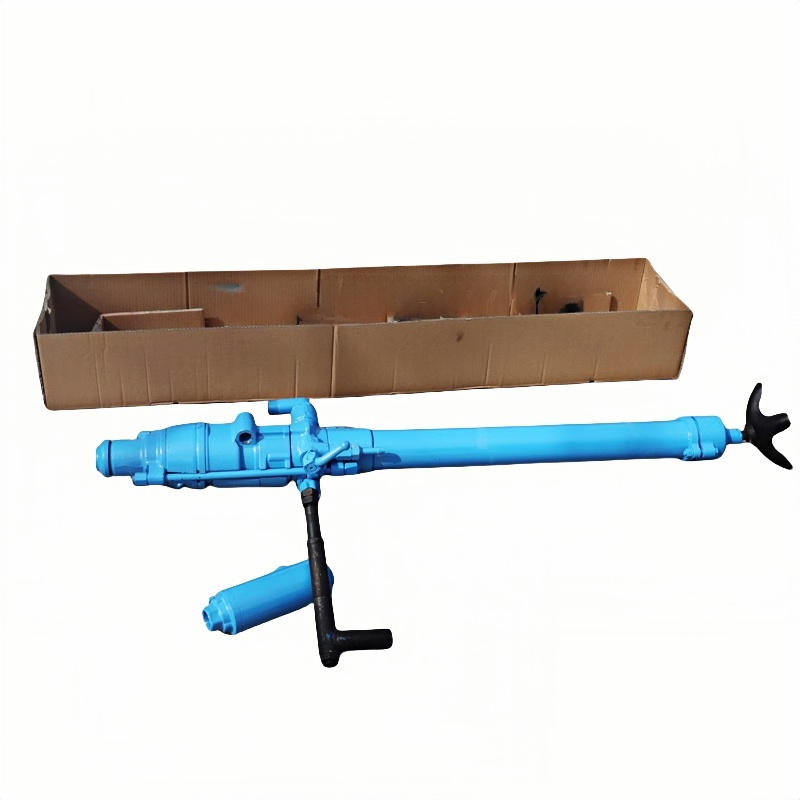

The YSP45 upward high-frequency rock drill is mainly used for rock drilling operations in mining, shaft sinking and tunneling. It can drill upward blast holes at an angle ranging from 60° to 90° with the horizontal plane. It can also be used for installing wedge-slot bolts or excavating raise shafts. The applicable rock hardness for this machine is f = 8 - 18.
The YSP45 upward high-frequency rock drill is divided into a general type. Its body is made of high-strength and lightweight alloy materials. Its structural performance is no different from that of foreign products, and the wedge block groups can be interchanged. In addition, the same body can be equipped with two wedge block groups of different lengths, which are applicable to more working conditions.
Tags:
Technical parameter
Weight: 44 KG
Overall Dimensions (Length * Width * Height): 1420 * 390 * 160 mm
Piston Diameter: 95 mm
Piston Stroke: 47 mm
Extended Height: 2170 mm
Retracted Height: 1420 mm
Propulsion Piston Diameter: 74 mm
Air Leg Propulsion Stroke: 750 mm
Cylinder Diameter: 95 mm
Inner Diameter of Air Leg Cylinder: 74 mm
Working Air Pressure: 0.4 - 0.63 Mpa
Impact Energy: ≥ 57 J ≥ 70 J ≥ 73.5 J
Air Consumption: ≤ 80 L/s ≤ 83 L/s ≤ 113.3 L
Impact Frequency: ≥ 42 Hz ≥ 45 Hz ≥ 46 Hz
Drilling Depth: ≥ 6 m
Torque: ≥ 15 N·m ≥ 18 N·m ≥ 21 N·m
Water Pressure for Use: 0.3 Mpa
Inner Diameter of Air Hose: 25 mm
Inner Diameter of Water Hose: 13 mm
Shank Tail Specification: B22 × 108
Suitable Drilling Diameter: 34 - 42 mm
Rotational Speed: 350 r/min
Weight of FY500A Oil Injector: 2.5 kg
Oil Capacity: 0.52 L
Shank Tail Specification: 60
