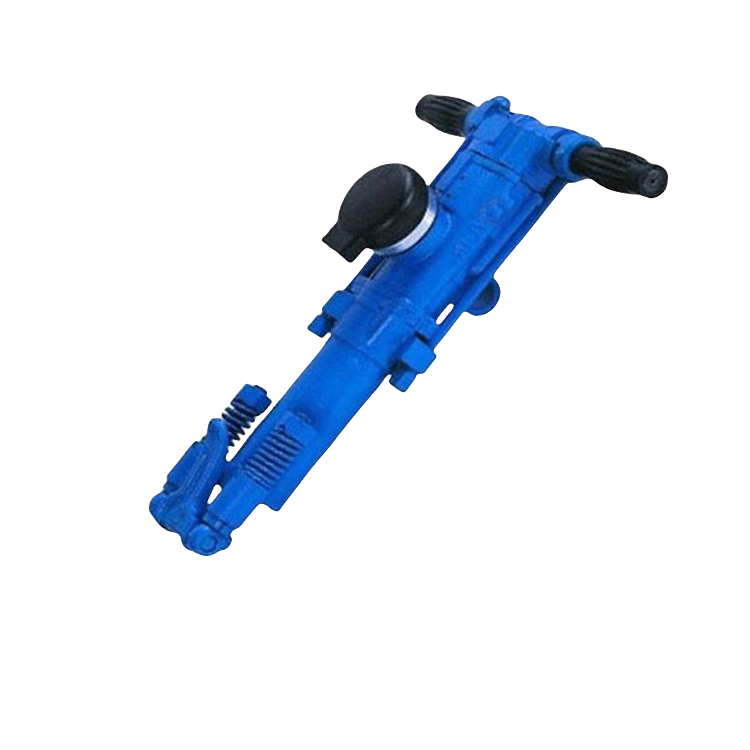

YT24 Pneumatic - leg Rock Drill

Individually packaged. Colors are optional
Send Inquiry
Description
Argument
Products Description

The YT24 pneumatic-leg rock drill is a high-performance equipment meticulously designed for rock drilling operations. It has a wide range of applications in numerous fields such as mining, tunnel construction, water conservancy and hydropower projects, and building foundation construction. With its outstanding performance, reliable quality and user-friendly design, it has become a powerful assistant in rock drilling projects, helping to promote various engineering projects efficiently and smoothly.

Tags:

Technical parameter

Weight: 24 kg

Overall Length: 604 mm

Operating Air Pressure: 0.35 - 0.63 MPa

Cylinder Diameter: 70 mm

Piston Stroke: 70 mm

Rock Drilling Impact Frequency: ≥ 27 Hz

Impact Energy: ≥ 65 J

Rock Drilling Air Consumption: ≤ 50 L/s

Drilling Depth: 5 m

Shank tail specification: 22 × 108 mm
